Yamaha Wolverine RMAX Rear Bumper Installation Instructions For Models: Wolverine RMAX (2021-2026)

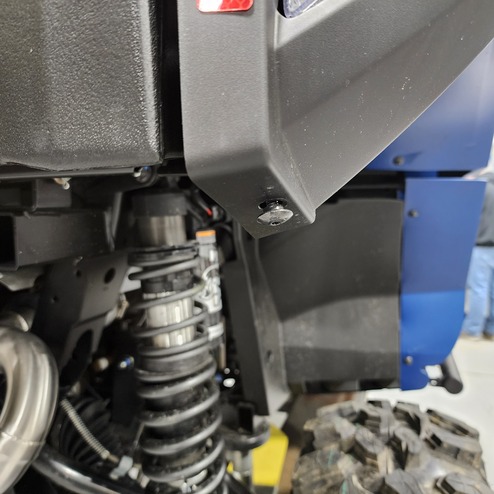

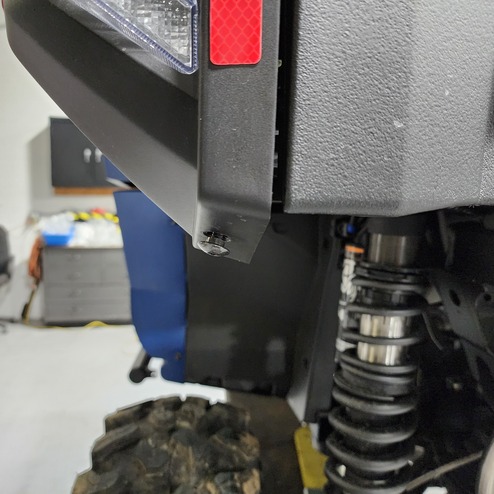

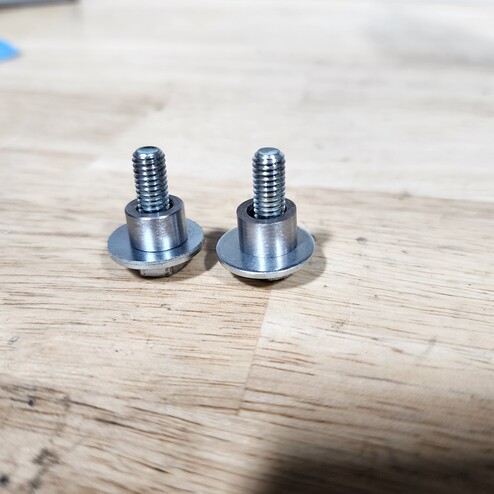

1. Begin by removing the (2) 4mm allen head bolts on the bed corners underneath the left and right bed corners.

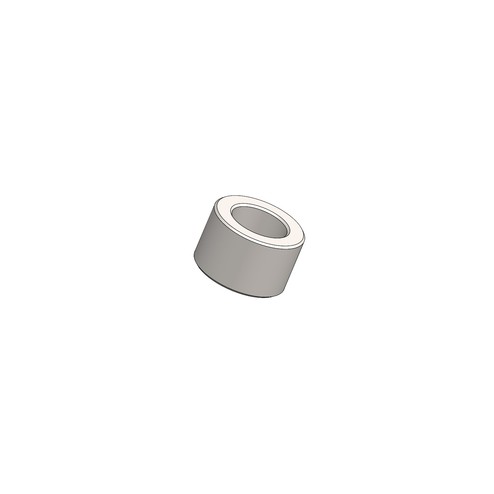

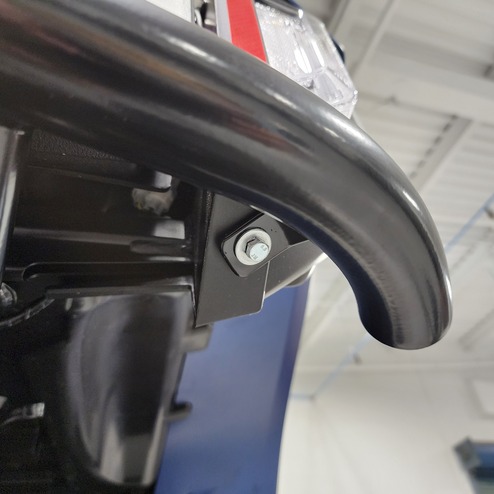

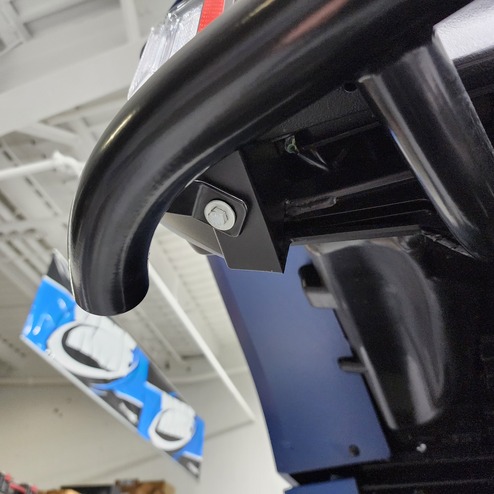

1. Begin installation of the bumper at the outer mounting tabs using the provided (2) M6x1.0x20 Hex Bolts, (2) ¼” Flat Washers, and (2) Wolverine Bumper Spacers as shown. Do not tighten.

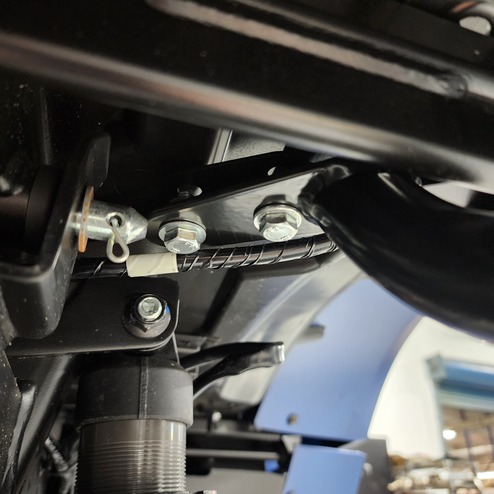

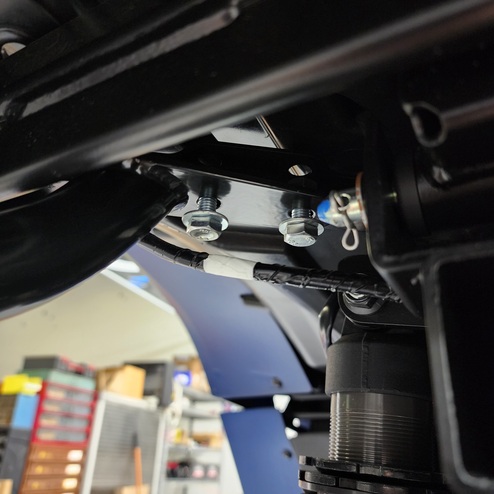

2. Install the provided (4) M8x1.25x20 Hex Bolts, (4) M8x1.25 Nylock Nuts, and (8) ¼’ Flat Washers through the inner mounting tabs to the bottom of the vehicle’s bed.
3. Check for proper alignment and clearance when bed is in tilted position. Tighten all hardware.
